NOS Window Switch

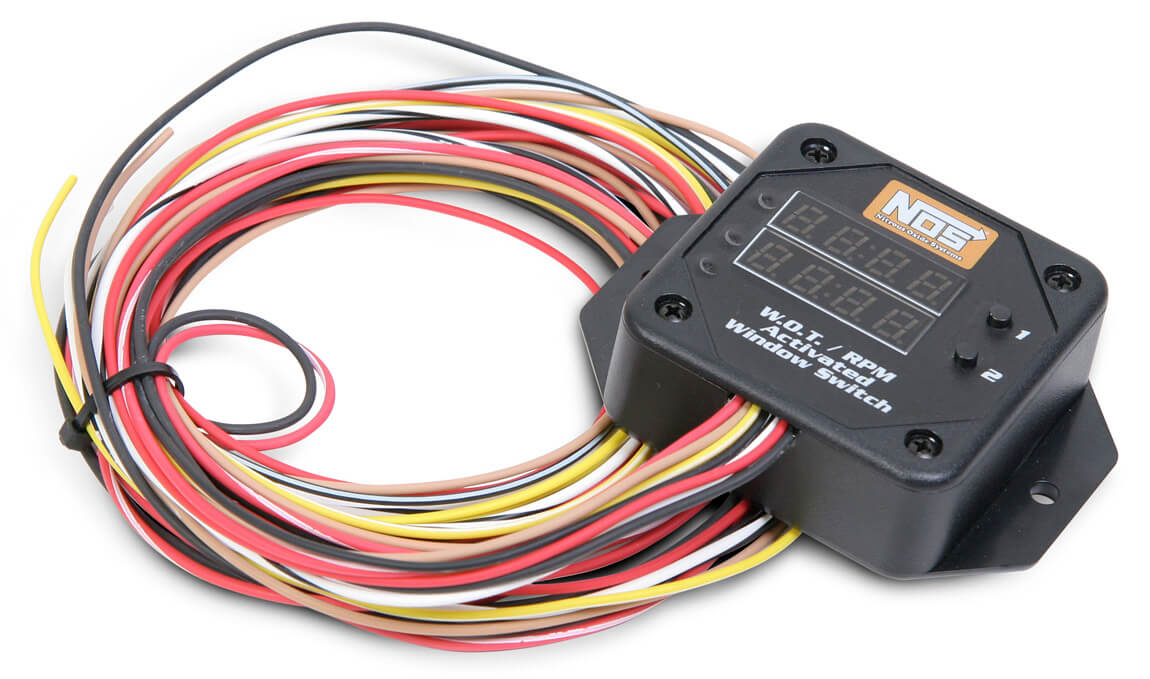

#15982 2 Stage Universal RPM TPS Activation Window Switch
Part #:15982
Availability:If not in stock, usually ships in 3-4 days.2 Stage Universal RPM TPS Activation Window Switch
MSRP:
$179.95 (USD)
Nitrous Oxide Systems 2 Stage Wide Open Throttle/ RPM activated Window Switch with Shift Light Control. The WOT/RPM activated window switch is a small, compact, user friendly unit with features like, 2 fully programmable independent RPM window switches that can operate from 0 to 20,000 RPM for anything from a low rpm engine to a high revving sport bike. It has the capability to read a rising or falling throttle position sensor for accurate activations every time. The WOT/RPM activated window switch also features a programmable output to activate a shift light for on-time gear pounding shifts and a handy recall feature that shows max RPM and TPS voltage for easy set-up.
Features:
Small, compact, user friendly unit with bright easy to read display
2 Fully programmable RPM window switches for easy adjustments without the need for RPM pills
Window switch off and on RPM can be programmed from 0 to 9,999 RPM in 1 RPM increments for precise control (Reading is x10 for applications over 9,999 RPM)
Works with any 4-cycle engine from 1 to 12 Cylinders
RPM input can be connected to a DIS coil “driver” wire or a tachometer output circuit
Will read from 0 to 20,000 RPM for use on a low RPM engine to high revving sport bikes
Can read a rising or falling TPS signal for a wide range of applications and precise activations
TPS trigger voltage is adjustable from 0 to 5.0 volts in 1 tenth increment.
Perfect for a Drive-By-Wire vehicle that has no throttle cable to mount a traditional activation switch
Window switches work independent of TPS so the window switch is at home just as much on a carbureted vehicle as it is on a EFI car
Shift light control is adjustable from 0 to 9,999 RPM for on-time gear pounding shifts every time
Live RPM and TPS readings are displayed on the bright, easy-to-see display
Handy recall feature allows the max RPM and TPS voltage to be viewed after a run
Bright colored LED’s light up when stages are active for easy verification of activation
Can also be used to activate other accessories, not just nitrous
INSTALL MANUAL:199r10482rev4.pdf
Features:
Small, compact, user friendly unit with bright easy to read display
2 Fully programmable RPM window switches for easy adjustments without the need for RPM pills
Window switch off and on RPM can be programmed from 0 to 9,999 RPM in 1 RPM increments for precise control (Reading is x10 for applications over 9,999 RPM)
Works with any 4-cycle engine from 1 to 12 Cylinders
RPM input can be connected to a DIS coil “driver” wire or a tachometer output circuit
Will read from 0 to 20,000 RPM for use on a low RPM engine to high revving sport bikes
Can read a rising or falling TPS signal for a wide range of applications and precise activations
TPS trigger voltage is adjustable from 0 to 5.0 volts in 1 tenth increment.
Perfect for a Drive-By-Wire vehicle that has no throttle cable to mount a traditional activation switch
Window switches work independent of TPS so the window switch is at home just as much on a carbureted vehicle as it is on a EFI car
Shift light control is adjustable from 0 to 9,999 RPM for on-time gear pounding shifts every time
Live RPM and TPS readings are displayed on the bright, easy-to-see display
Handy recall feature allows the max RPM and TPS voltage to be viewed after a run
Bright colored LED’s light up when stages are active for easy verification of activation
Can also be used to activate other accessories, not just nitrous
INSTALL MANUAL:199r10482rev4.pdf
