APE Pro Series Cam Chain Tensioner Kawasaki ZX10 Ninja 2006- 2015 Manually Adjustable

This item requires Vehicle Fitment, please select Vehicle first!
OR if you know the Part Number you need, select from Options below.

#ZX10R-P14 06-15 / 17-18 ZX10R

Part #:ZX10R-P14
Availability:
Kawasaki ZX10R 2006-2015 / 2017-2020 Pro Series Cam Chain Tensioner

MSRP: $124.66 (USD)

Untitled Document

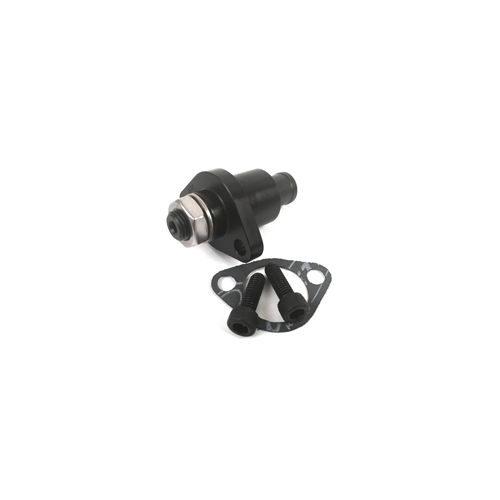

APE PRO SERIES Manual Cam chain Tensioner Kit

APE introduces the Pro Series manual cam chain tensioner. This new tensioner is designed for the racer who frequently adjusts his engine. The easy-access socket head adjuster screw is perfect for tight spaces. The interior o-ring design ensures that repeated adjustments will not eventually flatten the o-ring against a jam nut.

APE'S Pro Series tensioner features an internal o-ring and custom-machined adjuster bolt. The bolt is broached with a 4mm hex.

Most Pro Series tensioners come with mounting bolts and gasket (or o-ring, where applicable).

WARNING:

CAUTION: INCORRECT INSTALLATION OF A MANUAL CAM CHAIN TENSIONER MAY RESULT IN SEVERE ENGINE DAMAGE. IF YOU ARE NOT CERTAIN HOW TO INSTALL THE CAM CHAIN TENSIONER THEN IT IS ADVISED THAT IT BE INSTALLED BY A SHOP WHO IS FAMILIAR WITH THIS PROCESS.

IMPORTANT: WHEN REPLACING ANY HYDRAULIC OEM TENSIONER WITH A MANUAL TENSIONER, IT IS IMPORTANT TO MAKE SURE THAT THE OIL PASSAGE THAT SUPPLIED THE OEM TENSIONER IS BLOCKED OFF. FAILURE TO DO SO COULD RESULT IN A LOW OIL PRESSURE SITUATION.

INSTRUCTIONS

To set the tensioner adjustment, rotate the engine forward while screwing the tensioner bolt in. When you feel the engine tensioner parts (guide, rollers, etc.) make contact with the moving cam chain, back the tensioner bolt out 1/4 turn and tighten the jam nut. (For the finer pitch thread on the APE Pro Series tensioner it is advised to back the tensioner up 1/2 of a turn.)

DO NOT over-tighten the cam chain, as cam chain giude damage could occur. Be sure jam nut is tight against the tensioner body when complete.
